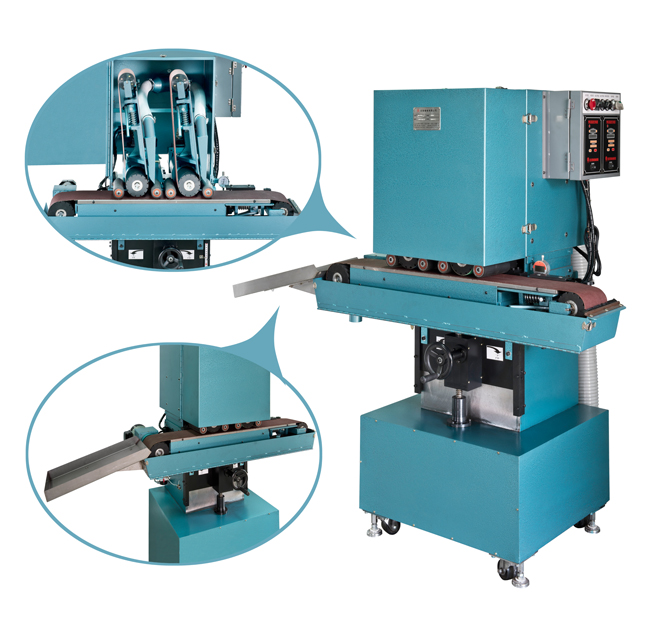

GW-BX66 Dual-channel automatic plane grinding machine
Function:
This machine has dual-channel Shabu zone polishing function, available crude. Two fine emery cloth grinding to polishing products, pressing and processing of objects with magnetic fixing roller, for there to grind and general magnetic metal workpieces to the conveyor belt feeding method can improve the grinding quality. Increase production. Save time and effort along with cleaning equipment to reduce dust pollution, simple and convenient operation member.
Characters:
Features: 1. Two grinding and conveyor motor can be stepless speed 2. The second track ring with emery cloth polishing can fine-tune the level of 3. Do move around grinding 4. There are dial indicator can provide data to adjust the thickness of the workpiece 5. With cleaning equipment can reduce dust hazards
The merchandise is detailed :

GW-BX66 雙道式自動平面研磨機

型式 最大研磨寛度 工件最大高度 每次最佳研磨進刀量 研磨段道 研磨馬達功率 研磨馬達轉數     研磨砂布環帶規格     輸送帶規格 輸送帶馬達功率 機械尺寸 機械重量
GW-BX66 140m/m 163m/m 0.1m/m 2道式 1.5KW 200rpm~2000rpm 150m/mx1220m/m-2 150m/mx2380m/m 100W 930m/mx1650m/mx1570m/m 560KG

GW-BX66 on the power abrasive belt speed adjustment (1)

GW-BX66 to adjust the speed of the conveyor belt (2)

GW-BX66 start grinding (3)

GW-BX66 measure workpiece dimensions (4)

GW-BX66 adjustment processing size (5)

GW-BX66 processing reground (6)

GW-BX66 abrasion results (7)
